Famous ZRD-06 dual axis solar tracker Manufacturer, Factories

UNLOCKING THE POTENTIAL OF SOLAR ENERGY!

Send Inquiry

Product Description

Unlocking The Potential Of Solar Energy

Dual-axis trackers allow achieving the maximum energy output! GPS-equipped tracking ensures full sun exposure every hour of every day of the year.

The ZRD series full automatic dual axis solar tracking system is a patented solution featuring two automatic axes to track the sun in east-west and south-north directions simultaneously. This innovative technology increases power generation by 30%-40% compared to fixed systems.

☀

High Efficiency

Maximize solar energy production with precise path following and optimized panel orientation.

⚙

Durable Design

Brushless D/C motors with low power consumption and strong resistance to wind and vibration.

❄

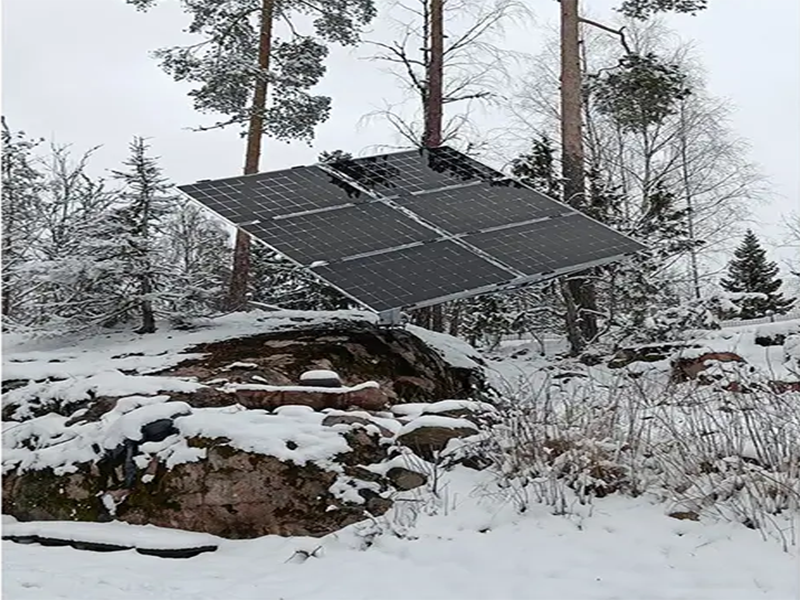

Extreme Resilience

Operates reliably from -40°C to +75°C, designed to withstand wind speeds up to 40m/s.

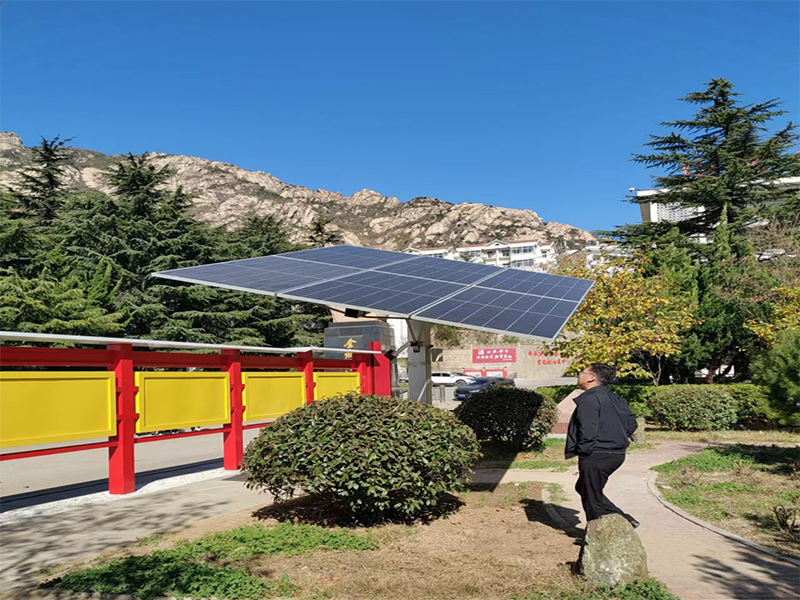

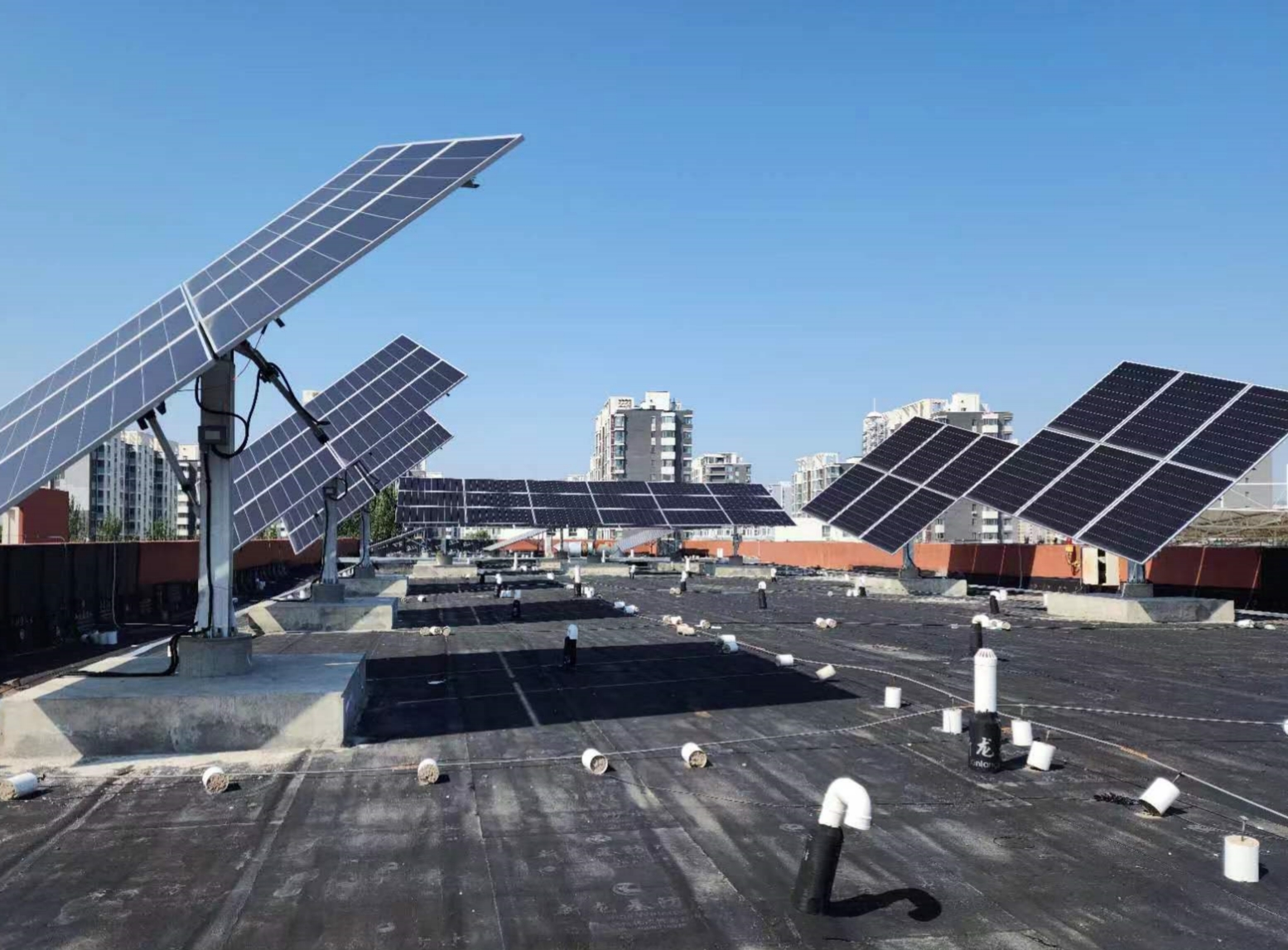

The ZRD-06 model is one of the most versatile tracking solutions, supporting 6 solar panels with a total power range from 2kW to 4.5kW. Panels are generally arranged in a 2 * 3 portrait or landscape layout, ensuring peak efficiency and a greater ROI for solar plants in various harsh environments.

Control Mode	Time + GPS
Average Tracking Accuracy	0.1° - 2.0° (adjustable)
Gear Motor	24V / 1.5A
Output Torque	5000 N·M
Tracking Power Consumption	＜ 0.02 kWh/day
Azimuth Angle Tracking Range	±45°
Elevation Angle Tracking Range	0° - 45°
Max. Wind Resistance (Horizontal)	40 m/s
Max. Wind Resistance (Operation)	> 24 m/s
Material	Hot-dipped galvanized steel (≥65μm) / Superdyma
System Guarantee	3 Years
Working Temperature	-40°C — +75°C
Technical Standard & Certificate	CE, TUV
Weight per Set	170 KGS - 200 KGS
Total Power per Set	2.0kW - 4.5kW

Frequently Asked Questions

How much more energy can a dual-axis tracker generate?

The ZRD series dual-axis tracking system can increase your power generation by 30% to 40% compared to traditional fixed-tilt solar mounting systems by ensuring panels are always perpendicular to the sun's rays.

What is the capacity of the ZRD-06 model?

The ZRD-06 model is designed to support 6 solar panels, with a total power output ranging from 2.0kW to 4.5kW depending on the specific panels used.

How does the system handle high wind speeds?

The system features a horizontal wind stow strategy to reduce wind pressure. It can withstand a maximum horizontal wind speed of up to 40m/s and remains operational in winds up to 24m/s.

Is the tracking system automated?

Yes, it uses a fully automatic dual-axis system equipped with GPS and Time control to track the sun's movement in both east-west and south-north directions throughout the year.

What are the environmental requirements for operation?

The system is built for harsh environments, with a working temperature range of -40°C to +75°C. It is constructed from hot-dipped galvanized steel and Superdyma for long-term corrosion resistance.

What certificates does the ZRD system hold?

The tracking system meets high technical standards and holds both CE and TUV certifications, ensuring reliability and safety for global solar projects.
