Famous Flat Single Axis tracker with Inclined Module Manufacturer, Suppliers

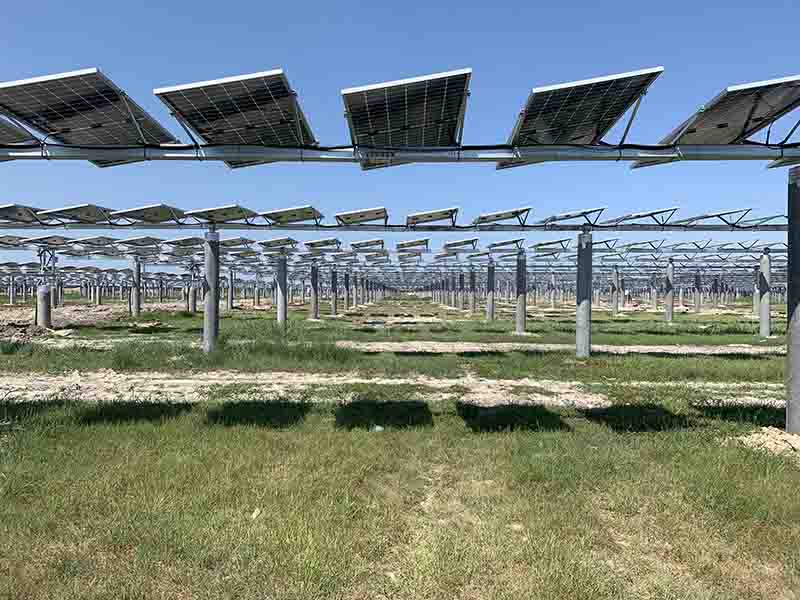

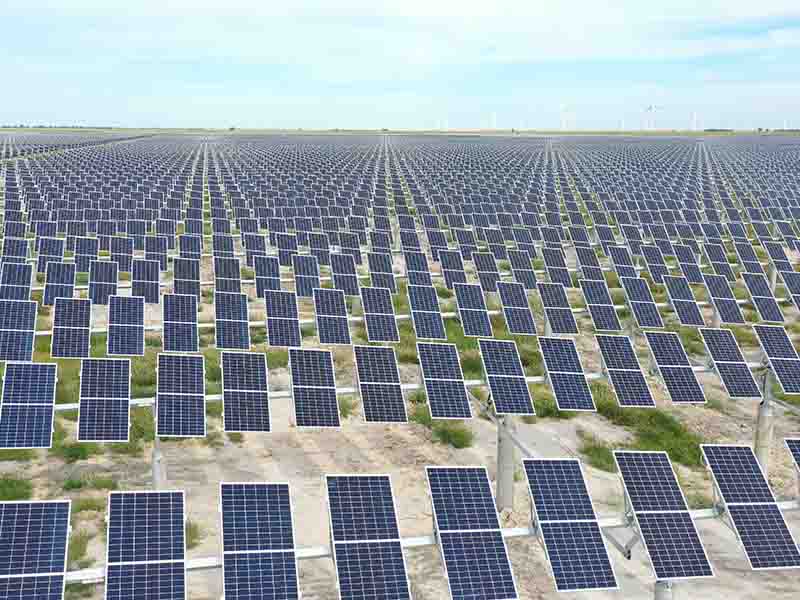

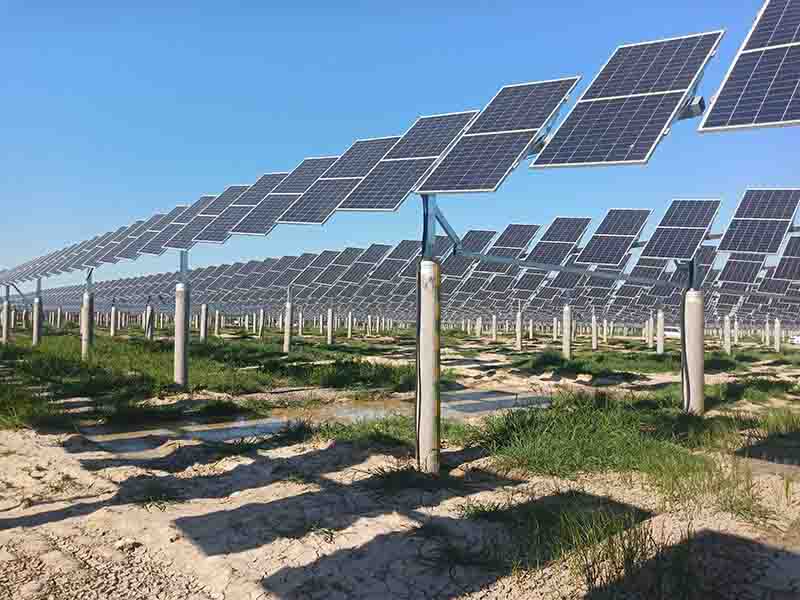

ZRPT flat single axis solar tracking system with tilted module is a combination of flat single axis solar tracking system and tilted single axis solar tracking system. It has one flat axis tracking the sun from east to west, with solar modules installed in a 5 - 10 degrees tilted angle. It is mainly suitable for medium and high latitude regions, promote your power generation by about 20%.
Flat single axis solar tracking system with tilted module is a sophisticated combination of flat single axis and tilted single axis tracking technologies. It features a flat axis that tracks the sun from east to west, complemented by solar modules installed at a 5 - 10 degrees tilted angle. This design is specifically engineered for medium and high latitude regions, capable of promoting power generation by approximately 20%.
Flexible System Architecture: Trackers are available in centralized and decentralized types. Centralized systems use a single motor to power a driveline between rows, while decentralized systems utilize one motor per tracking row for independent adjustment.
The driving system incorporates a self-developed special stainless steel shell linear actuator featuring robust internal and external protection. Equipped with a rubber dust ring between shells and a reverse self-locking function, the system offers strong impact resistance and high stability. This makes it exceptionally suitable for harsh outdoor environments, ensuring a long service life, large output torque, and low maintenance costs.
Technical Specifications
Control mode
Time + GPS
System type
Independent drive / 2-3 rows linked
Average tracking accuracy
0.1° - 2.0° (adjustable)
Gear motor
24V/1.5A
Output torque
5000 N·M
Tracking power consumption
0.01kwh/day
Azimuth angle tracking range
± 50°
Solar module tilted angle
5° - 10°
Max. wind resistance (horizontal)
40 m/s
Max. wind resistance (operation)
24 m/s
Main material
Hot-dipped galvanized steel ≥ 65μm
System warranty
3 years
Working temperature
-40℃ — +75℃
Weight per set
160KGS - 350KGS
Total power per set
4kW - 20kW
Frequently Asked Questions
1. How much can this tracking system improve energy yield?
By combining east-west tracking with a 5-10 degree tilted module angle, the system can increase power generation by approximately 20%, especially in medium and high latitude regions.
2. What is the difference between centralized and decentralized trackers?
Centralized trackers use a single motor to drive multiple rows via a driveline, while decentralized systems feature one motor per row, allowing for independent movement and easier installation on varied terrain.
3. Is the system durable enough for extreme weather?
Yes. The system uses a stainless steel shell linear actuator with high protection ratings, reverse self-locking functions, and can withstand wind speeds up to 40 m/s in horizontal stow position.
4. What are the maintenance requirements for the actuator?
The driving system is designed for low operation and maintenance costs, featuring a self-developed actuator with protective rubber dust rings and durable stainless steel construction.
5. What is the tracking accuracy of the system?
The system achieves an average tracking accuracy of 0.1° to 2.0°, which is adjustable based on specific project requirements using Time + GPS control modes.
6. What materials are used for the structure?
The main structure is made of hot-dipped galvanized steel with a coating thickness of ≥ 65μm, ensuring excellent corrosion resistance in outdoor environments.
