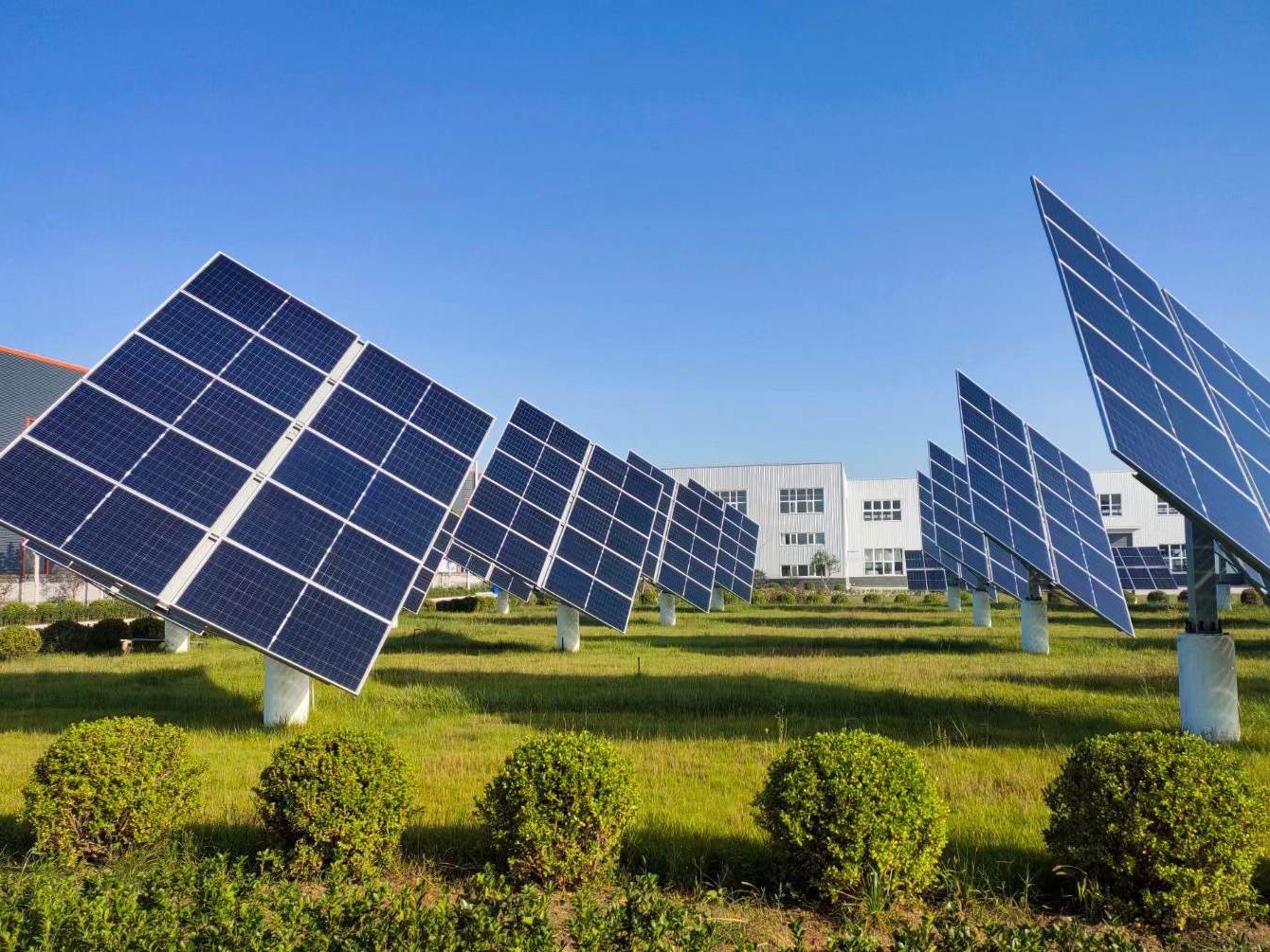

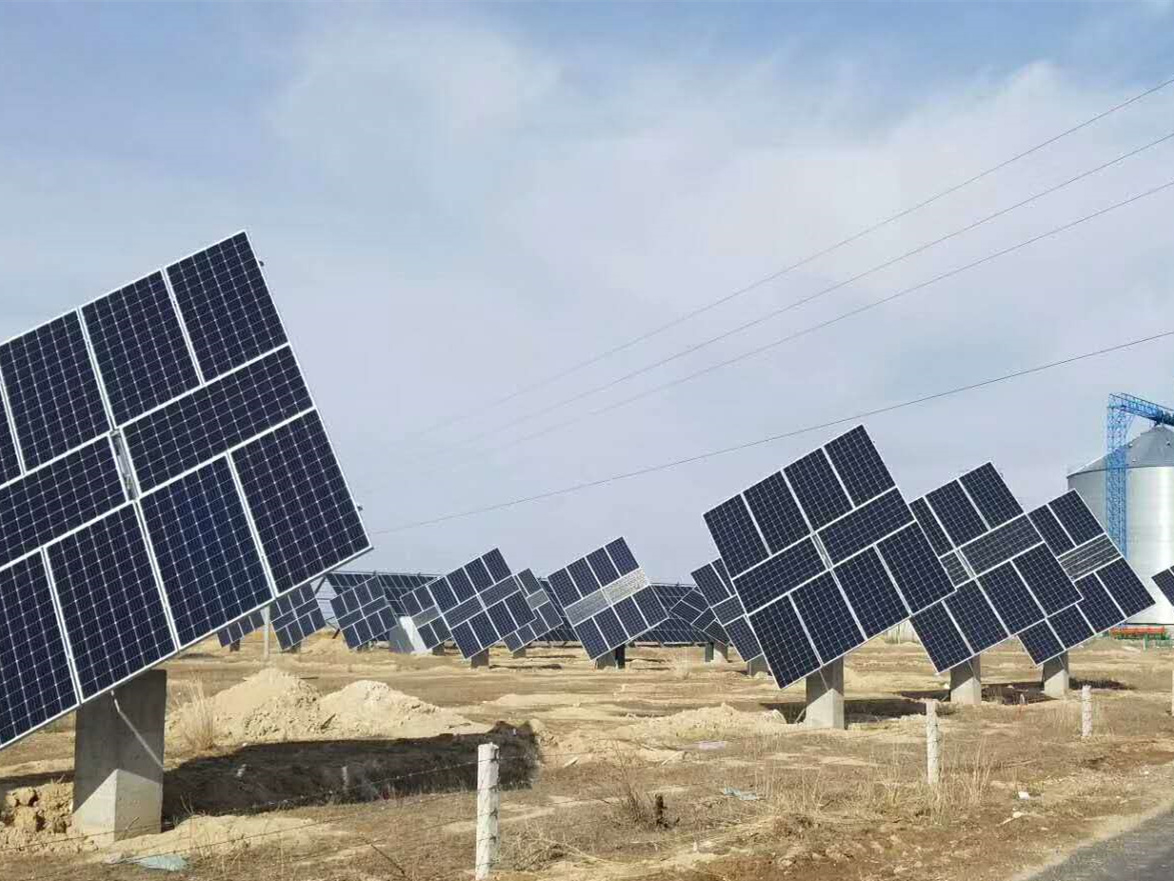

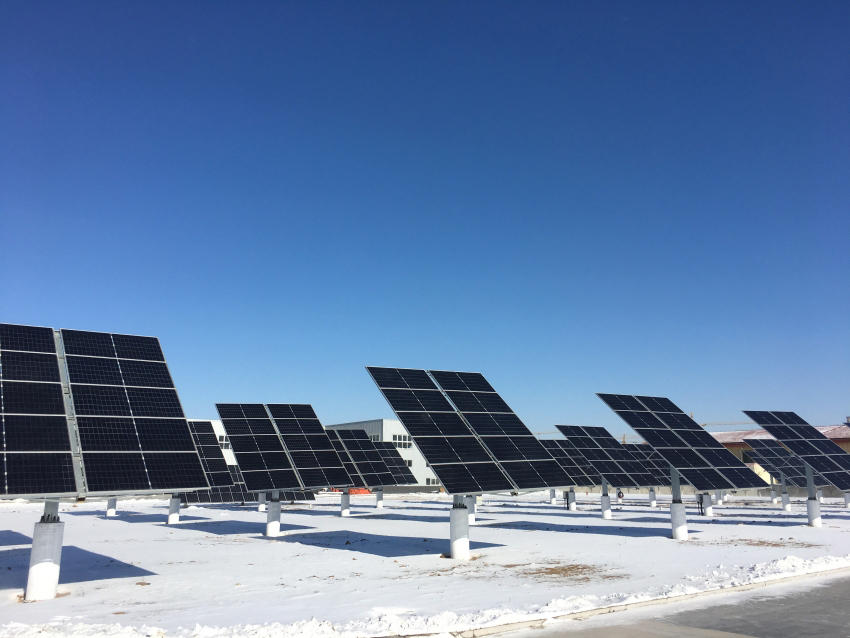

Our advanced dual-axis solar tracking system represents decades of design and perfection, creating the most reliable tracking solution available. This system ensures continuous solar power production even in challenging weather conditions, supporting the global transition to sustainable energy. The ZRD-10 system is specifically engineered to support 10 solar panels with a total power output ranging from 4.0kW to 5.5kW.
Designed for quick deployment with a reduced amount of components.
High wind resistance and robust galvanized steel construction.
Dual-axis tracking significantly increases power production compared to fixed systems.
Simplified design ensures minimum O&M work over the system's lifecycle.
The solar panels are generally arranged in a 2 * 5 landscape layout, with a total surface area of less than 26 square meters. This solution is ideal for challenging sites, including irregular layouts, undulated terrain, and high-wind regions. Through intelligent design and astronomical algorithms, this system provides an exceptionally cost-effective investment for any solar project.
| Control Algorithm | Astronomical Algorithms |
| Average Tracking Accuracy | 0.1° - 2.0° (adjustable) |
| Gear Motor | 24V / 1.5A |
| Tracking Power Consumption | ≤ 0.02 kWh/day |
| Azimuth Angle Range | ±45° |
| Elevation Angle Range | 0° - 45° |
| Max Wind Resistance (Horizontal) | 40 m/s |
| Max Wind Resistance (Operation) | > 24 m/s |
| Material | Galvanized steel > 65μm / Pre-galvanized steel |
| System Guarantee | 3 years |
| Working Temperature | -40℃ — +75℃ |
| Certificates | CE, TUV |
| Weight Per Set | 200 KGS - 220 KGS |
| Module Supported | Most commercially available panels |
| Total Power Per Set | 4.0kW - 5.5kW |
