High-Quality ZRT-16 Tilted Single Axis Solar Tracking System Manufacturer, Exporters

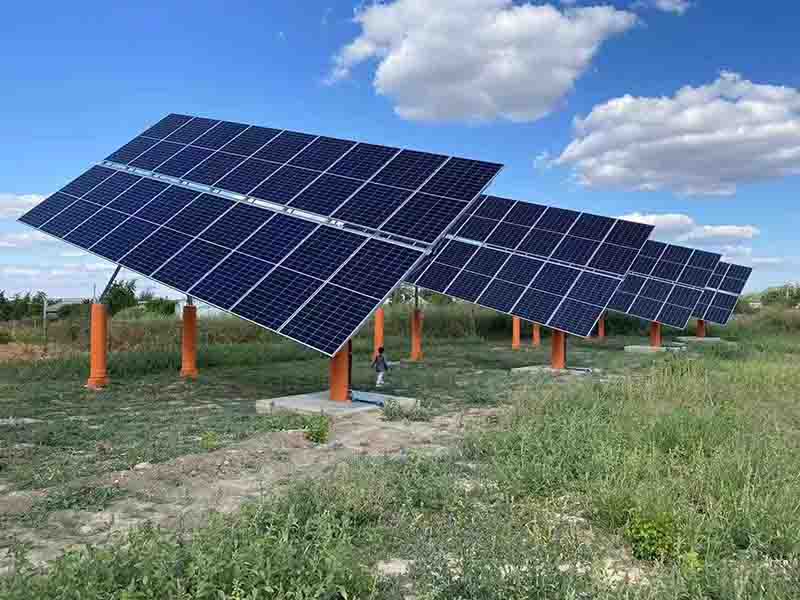

ZRT tilted single axis solar tracking system has one tilted axis (10°– 30° tilted) tracking the azimuth angle of the sun. Each set mounting 10 - 20 pieces of solar panels, increase your power generation by about 15% - 25%.

Send Inquiry

Product Description

The ZRT tilted single axis solar tracking system features a unique tilted axis (10°– 30° tilted) designed to track the sun's azimuth angle efficiently. By mounting 10 - 20 solar panels per set, this system significantly increases power generation by approximately 15% - 25% compared to fixed systems.

⚙️ Flexible Scalability

The ZRT series includes various models such as ZRT-10, ZRT-12, ZRT-13, ZRT-14, and ZRT-16, catering to different project scales and panel requirements.

💰 Cost-Efficiency

The ZRT-16 model stands out as a top-tier choice, offering the lowest average cost per unit while maintaining high performance and reliability.

🛡️ Robust Control

Utilizing independently developed driving and control solutions, the system ensures high tracking accuracy and stability under various weather conditions.

Parameter	Technical Specifications
Control mode	Time + GPS
System type	Independent drive / 2-3 rows linked
Average tracking accuracy	0.1° - 2.0° (adjustable)
Gear motor	24V / 1.5A
Output torque	5000 N·M
Power consumption	0.01kwh / day
Azimuth tracking range	± 50°
Elevation tilted angle	10° - 15°
Max. wind resistance (horizontal)	40 m/s
Max. wind resistance (operation)	24 m/s
Material	Hot-dipped galvanized ≥ 65μm
System warranty	3 years
Working temperature	-40℃ to +75℃
Weight per set	260KGS - 350KGS
Total power per set	6kW - 20kW

The ZRT-16 model generally covers an installation area of 31 - 42 square meters. While dual axis and tilted single axis tracking systems are rare due to the complexity of driving units, our specialized solutions effectively control costs without compromising on system reliability, making these advanced trackers affordable for the global market.

Frequently Asked Questions

How much extra power can the ZRT tracker generate?

The ZRT tilted single axis solar tracking system can increase power generation by approximately 15% to 25% compared to static solar mounting structures.

What control method does the system use?

The system utilizes a high-precision Time + GPS control mode to ensure accurate tracking of the sun throughout the day.

Can the system withstand high winds?

Yes, the system is designed for durability with a maximum wind resistance of 40 m/s in horizontal position and 24 m/s during operation.

What is the maintenance cost for this tracker?

The system is highly efficient with a very low power consumption of only 0.01kwh per day, and the hot-dipped galvanized material ensures long-term corrosion resistance.

What models are available in the ZRT series?

The series offers several models including ZRT-10, ZRT-12, ZRT-13, ZRT-14, and the cost-effective ZRT-16, supporting various quantities of solar panels.

What is the working temperature range?

The ZRT tracking system is built for extreme environments, operating reliably in temperatures ranging from -40℃ to +75℃.
