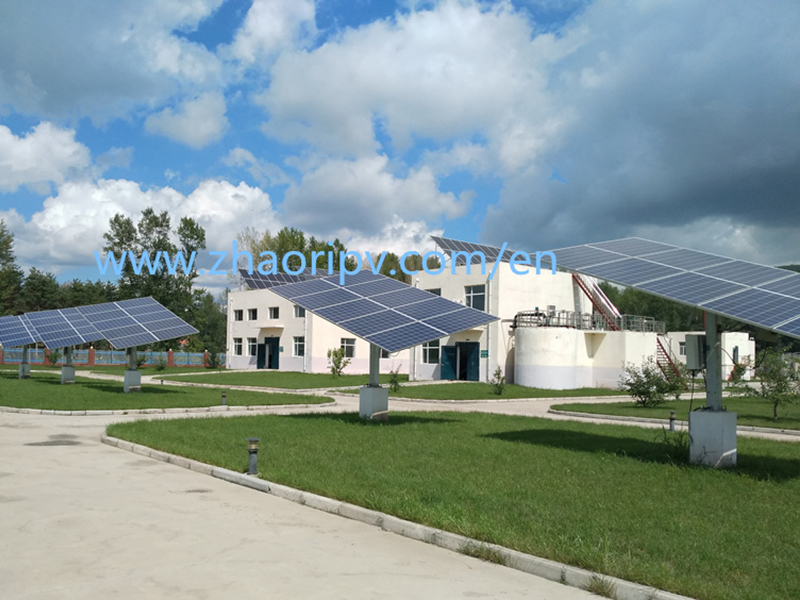

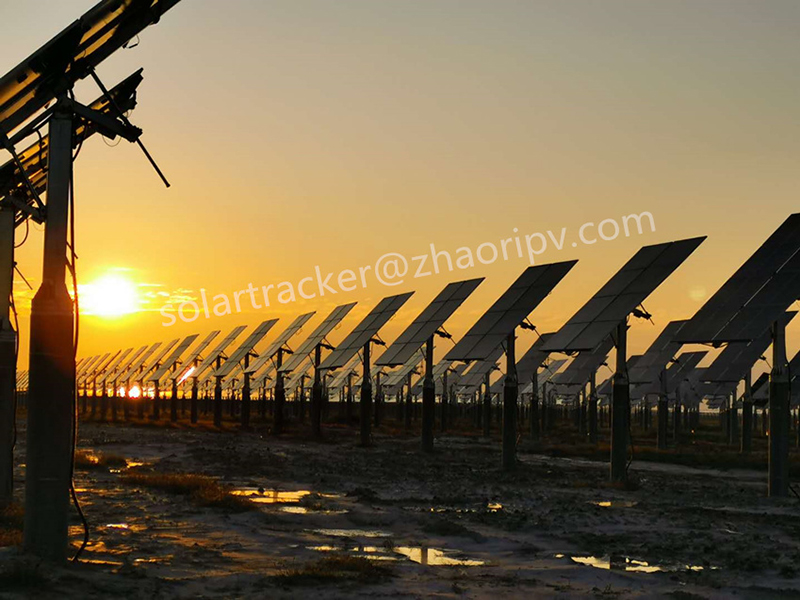

ZRS Semi-Auto Dual Axis Solar Tracking System
Patented technology featuring a simple structure, easy installation, and high efficiency. Designed for maximum energy yield with minimal maintenance, certified by CE and TUV.
⚙️
Innovative Dual-Axis Tracking: One automatic axis tracks the sun east-west daily, while a manual axis tracks south-north with adjustment needed only 4 times a year.
⚡
Higher Efficiency: Boosts energy production by +25% to 35% compared to fixed systems.
🛡️
Robust Design: Excellent wind and snow resistance with a solid bracket and hot-dipped galvanized material.
📉
Low Operation Cost: Minimal power consumption (approx. 3kWh/year) and reduced maintenance expenses.
🔧
Easy Adjustment: Manual adjustment takes only half a minute using our specialized pole; no heavy machinery required.
🌱
Environmental Friendly: Independent support structure adapts to various terrains without affecting plant growth.
| Technical Specifications |
Details |
| Control mode |
Time + GPS |
| Average tracking accuracy |
0.1° - 2.0° (adjustable) |
| Gear motor power |
24V / 1.5A |
| Output torque |
5000 N·M |
| Tracking power consumption |
< 0.01 kWh/day |
| Azimuth angle tracking range |
±50° |
| Elevation angle adjustment range |
45° |
| Max. wind resistance in horizontal |
> 40 m/s |
| Max. wind resistance in operation |
> 24 m/s |
| Material |
Hot-dipped galvanized ≥ 65μm |
| System warranty |
3 years |
| Working temperature |
-40℃ — +80℃ |
| Technical standard & certificate |
CE, TUV |
| Weight per set |
150 - 250 KGS |
| Total power per set |
1.5kW - 5.0kW |
Frequently Asked Questions
How does the dual-axis tracking work?
It features one automatic axis that tracks the sun East-West daily and one manual axis for South-North tracking which requires adjustment only 4 times a year.
What is the expected energy increase?
The ZRS system can effectively increase power generation by 25% to 35% compared to traditional fixed solar brackets.
Is the manual adjustment difficult?
Not at all. The manual adjustment uses a specialized pole developed by our company. It allows for stepless adjustment and can be completed by one person in about 30 seconds.
How much electricity does the tracker consume?
The system is highly energy-efficient, consuming only about 3kWh per set per year.
How does it perform in extreme weather?
The system is built with hot-dipped galvanized steel and can withstand horizontal winds of over 40 m/s and operates in temperatures ranging from -40℃ to +80℃.
What certifications does the ZRS system have?
The product has successfully passed both CE and TUV certifications, ensuring mature and reliable technology.
