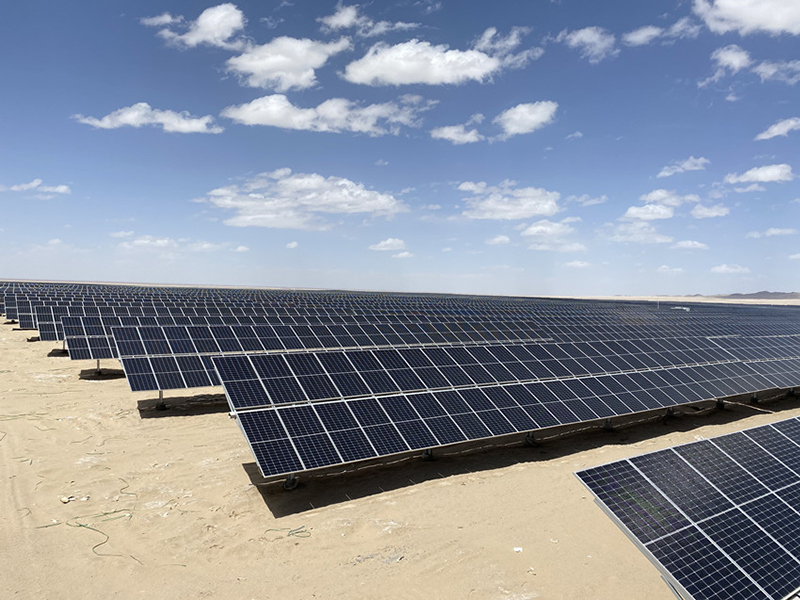

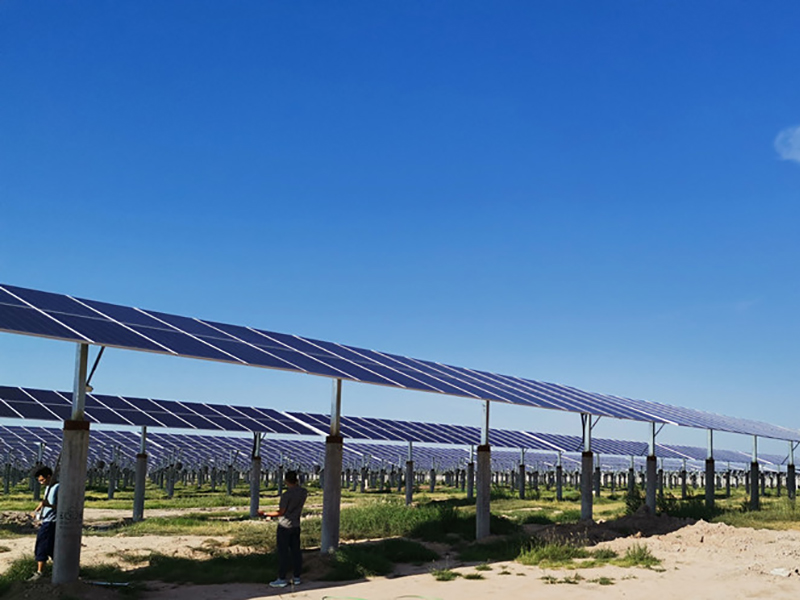

The ZRA adjustable fixed structure features a manual actuator to track the elevation angle of the sun with stepless adjustment. By implementing seasonal manual adjustments, this structure can increase power generation capacity by 5%-8%, effectively reducing LCOE and maximizing revenue for investors. Specifically designed for diverse environments, these structures offer low installation costs and a hassle-free experience even in harsh terrains like deserts or rocky ground.
Independently developed actuator with IP65 protection, featuring sealed lead screws and lubricating oil tanks for extreme durability.
Utilizes galvanized aluminum magnesium with 20 times the anti-corrosion performance of standard steel and a 25-year corrosion-free guarantee.
Reduces steel consumption by 10% - 20% while maintaining structural integrity, further lowering power station investment costs.
| Parameter | Details |
|---|---|
| Elevation angle adjust range | 50° |
| Max. wind resistance performance | 40 m/s |
| Structure material | Hot-dipped galvanized steel ≥65μm / Galvanized aluminum magnesium |
| System guarantee | 3 years |
| Working temperature | -40℃ to +80℃ |
| Weight per set | 200 - 400 KGS |
| Solar panels quantity per set | 15 – 60 pieces |
| Total power per set | 5kW - 30kW |

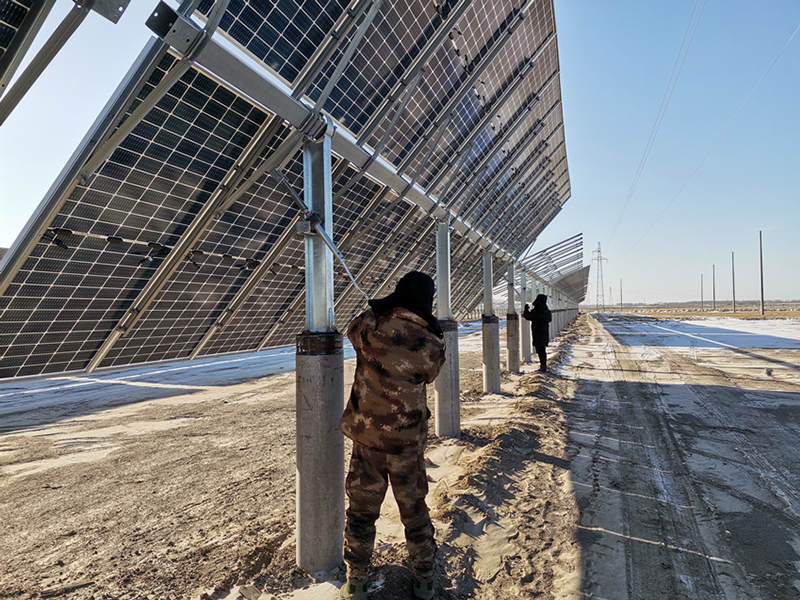

Equipped with a customized adjustment crank, a single person can adjust approximately 3MW per day. The system also includes a double beam structure specifically engineered to support mainstream 500W+ large-size solar panels, ensuring stability and safety in high-wind environments.
