Best Tilted Single Axis Solar Tracking System Suppliers, Companies

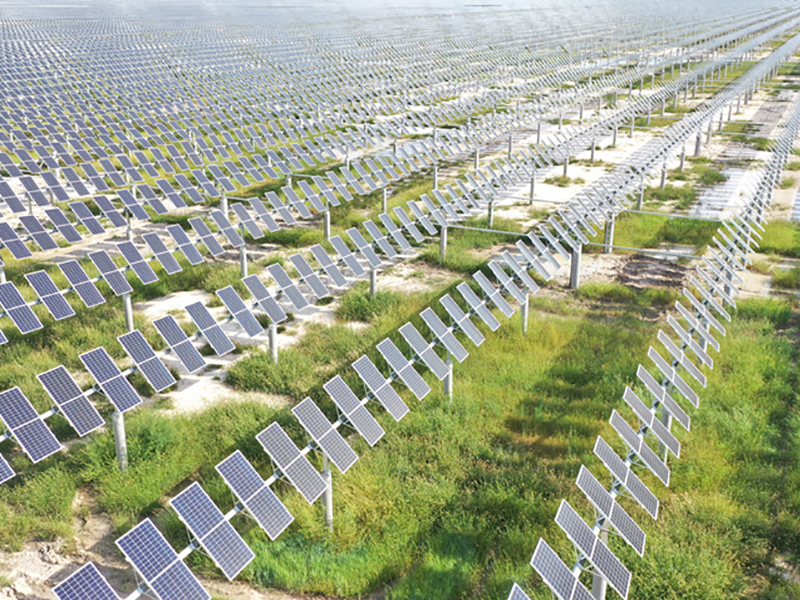

ZRT tilted single axis solar tracking system has one tilted axis (10°– 30° tilted) tracking the azimuth angle of the sun. It is mainly suitable for medium and high latitude regions. Each set mounting 10 - 20 pieces of solar panels, increase your power generation by about 20% - 25%.

Send Inquiry

Product Description

ZRT tilted single axis solar tracking system features a tilted axis (10°– 30° tilt) designed to track the sun's azimuth angle. Specifically engineered for medium and high latitude regions, each set supports 10 - 20 solar panels, boosting power generation by approximately 15% - 25%.

✓

High Stability: Utilizes three-point structural support for superior wind resistance and zero-shaking clearance in the driving system.

⚙

Maintenance Free: Features UPE material solar bearings with 4.5 million molecular weight; self-lubricating and aging-resistant for 25 years.

🛡

Durable Protection: IP65 protection for electronics with double-layer core component shielding, ideal for desert and coastal environments.

⚓

Robust Material: Built with hot-dipped galvanized steel or new galvanized aluminum magnesium for high strength and corrosion resistance.

Control mode	Time + GPS
System type	Independent drive / 2-3 rows linked
Average tracking accuracy	0.1° - 2.0° (adjustable)
Gear motor	24V/1.5A
Output torque	5000 N·M
Tracking power consumption	0.01kwh/day
Azimuth angle tracking range	±50°
Elevation tilted angle	10° - 30°
Max. wind resistance in horizontal	40 m/s
Max. wind resistance in operation	24 m/s
Material	Hot-dipped galvanized ≥65μm
System warranty	3 years
Working temperature	-40℃ — +75℃
Weight per set	160KGS - 350KGS
Total power per set	5kW - 10kW

The system is designed for efficiency and ease of use. No professional maintenance personnel are required; spare parts can be replaced directly on-site in a very short time. With over 6,000 sets installed globally, the ZRT series is a proven solution for public utilities, industrial projects, solar water pumps, and household applications.

Frequently Asked Questions

1. How much can the ZRT solar tracking system increase power generation? The ZRT tilted single axis system can increase your power generation by approximately 15% to 25% compared to fixed structures.

2. Is the system suitable for high-wind areas? Yes, it is designed for high stability with a max wind resistance of 40 m/s in horizontal position and 24 m/s during operation.

3. What is the maintenance requirement for the rotation parts? The system uses UPE material solar bearings which are self-lubricating and wear-resistant, allowing for 25 years of operation without maintenance.

4. Can this tracker be installed in coastal or desert environments? Absolutely. The core components feature IP65 protection and the structure is made of hot-dipped galvanized steel with high corrosion resistance.

5. How many solar panels can be mounted on one set? Each set of the ZRT system is designed to mount between 10 to 20 pieces of solar panels.

6. What is the working temperature range for the system? The system is built to withstand extreme climates, operating effectively in temperatures ranging from -40℃ to +75℃.
